Drainage Free Removable Air Conditioner All In One Design Removable Ac Unit

Name: Drainage Free Removable Air Conditioner All In One Design Removable Ac Unit
Brand: Mingsheng Intelligent Technology (Guangdong) Co., Ltd.
SKU: KY-20/45-79
Price: 1,430.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: MS / OEM

Certification: CB

Model Number: KY-20/45-79

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 160-2700

Packaging Details: Carton / Woden case

Delivery Time: 7-30 days

Payment Terms: T/T

Supply Ability: Good

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Drainage Free Removable Air Conditioner, All In One Removable Air Conditioner, All In One Removable Ac Unit


Compressor:	Panasonic And Some Other Well Known Brand	Cover Body:	Metal Sheet With Powder Coated
Finned Exchanger:	The Fin Is From Light Aluminum Foil ,hydrophilic Aluminum Foil, Epoxy Resin Aluminum Foil, Hydrophobic Aluminum Foil,copper Foil, Antique Copper Foil.	Base Tube:	Internal Threaded Copper Tube, Stainless Steel Tube, Nickel-white Copper Internal Threaded Tube.
OEM /ODM:	It Is Optional Between OEM And ODM	Markets Have Had:	USA,Australia,Middle East,South Korea,India,Thailand,Finland,Mongolia And Etc.
Laboratory:	Available In The Factory

Compressor:	Panasonic And Some Other Well Known Brand
Cover Body:	Metal Sheet With Powder Coated
Finned Exchanger:	The Fin Is From Light Aluminum Foil ,hydrophilic Aluminum Foil, Epoxy Resin Aluminum Foil, Hydrophobic Aluminum Foil,copper Foil, Antique Copper Foil.
Base Tube:	Internal Threaded Copper Tube, Stainless Steel Tube, Nickel-white Copper Internal Threaded Tube.
OEM /ODM:	It Is Optional Between OEM And ODM
Markets Have Had:	USA,Australia,Middle East,South Korea,India,Thailand,Finland,Mongolia And Etc.
Laboratory:	Available In The Factory

Drainage Free Removable Air Conditioner All In One Design Removable Ac Unit

Regarding outdoor portable air conditioners, we adopt an all - in - one production model. Everything from independent design, production of condensers, evaporators and sheet metal parts, finished product assembly to testing is completed independently by ourselves.

Product Parameter

serial no.	specification	technical paramter	technical paramter	technical paramter
1	Model	KY-58	KY-68	KY-79
2	Rated Cooling Capacity(W/BTU)	5800 W / 19790 BTU	6800 W / 23200 BTU	7900 W / 27000 BTU
3	Energy Efficiency Ratio (W/W)	2.58	2.72	3.0
4	Rated Voltage(V)	220	220	220
5	Rated Frequency(Hz)	50	50	50
6	Rated Cooling Power(W)	2250	2500	2625
7	Rated Cooling Current (A)	10.4	11.6	12.2
8	Maximum Input Power(W)	3480	3880	4070
9	Maximum Input Current(A)	15.8	17.6	18.5
10	Allowable Pressure of Refrigeration system(MPa)	4.2	4.2	3.0
11	Refrigerant and Charge Amount	R410A:1150g	R410A:1400g	R410A:1400g
12	Circulating Air Volume(m³)	1200	1200	1200
13	Noíse dB(A)	57	57	57
14	Protection Category against Electric Shock	I	I	I
15	Waterproof Grade	IPx4	IPx4	IPx4
16	N.W. (kg)	90	92	98
17	Unit Size	6065581296 mm	6065581296 mm	6065581296 mm

Product Description

The outdoor portable air conditioner is a refrigeration device with strong flexibility and adaptability. It features an integrated design, allowing for plug - and - play operation.

It can be easily moved around and is suitable for various climates. It offers both cooling and heating functions, is energy - efficient, and is simple to operate.

Principle of the non-drainage function:

During the operation of the unit, the evaporator absorbs the heat and moisture in the air, and the moisture condenses on the fins of the evaporator, flowing downstream to the water receiving tray and then to the bottom of the condenser. The condensed water is splashed onto the fins of the condenser and evaporated by the fan blade, and then blown into the air by the condensing fan. The amount of condensation evaporation is greater than the amount of evaporation condensation, so that the water in the water receiving tray will never accumulate too much.

Due to the cooling effect of water, the condenser has a lower condensing temperature, resulting in a significant improvement in system efficiency.

If a certain required quantity is reached, the product's performance and appearance can be customized according to the local market demands of customers, so as to gain a better edge in seizing market opportunities.

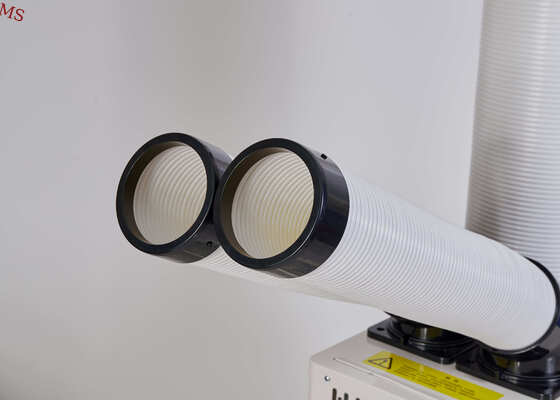

Drainage Free Removable Air Conditioner All In One Design Removable Ac Unit 0

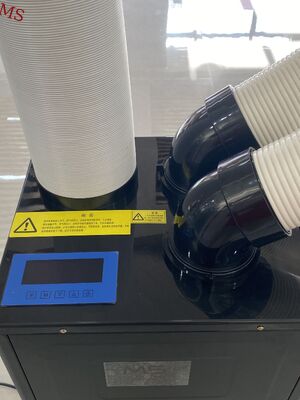

Drainage Free Removable Air Conditioner All In One Design Removable Ac Unit 1

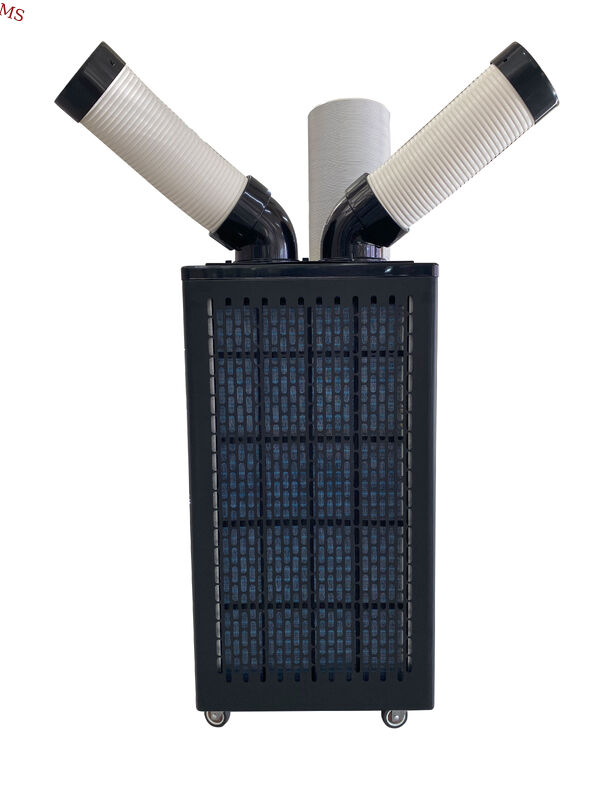

Drainage Free Removable Air Conditioner All In One Design Removable Ac Unit 2
